Shenzhen Yuanming Technology Co., Ltd. specializes in the production and operation of high-power UV LED curing light source products, and produces hundreds of high-power UV LED light packaging
Add to Cart
70W UV LED Module Applications
Our UV LED curing systems are widly used in glass industry, decoration industry, building materials industry,
furniture industry, etc.
It's suitable for kinds brand of inkjet sprayers such as Konika,Xaar, Ricoh, and kinds of printers
includingflatbed printer, roll to roll printer, wide format printer, inkjet, digital printer, rotary press etc.
"UV LED" curing lamp is a new technology and new way of drying UV series material resin/ink/varnish/adhesive/coating
etc. by ultraviolet irradiation, with fast speed and good performance.
Cool Printing Environment: Enables to print on heat sensitive substrates, viz. thin slides, self-adhesive sheet, stretch
PVC materials, and more. Minimum heat resistance allows effective bi-directional calibration.
70W UV Led Module Product Description
| Product Name | YM-K24-70W-3030 UV LED MODULE |
| Power | 70W |
| Color | UV |
| Number of lamp beads | 24 pcs |
| Diode type | 3535 smd |
| Lens Material of Diode | Quartz |
| View Angle of the Lens | 60, 120 degree |

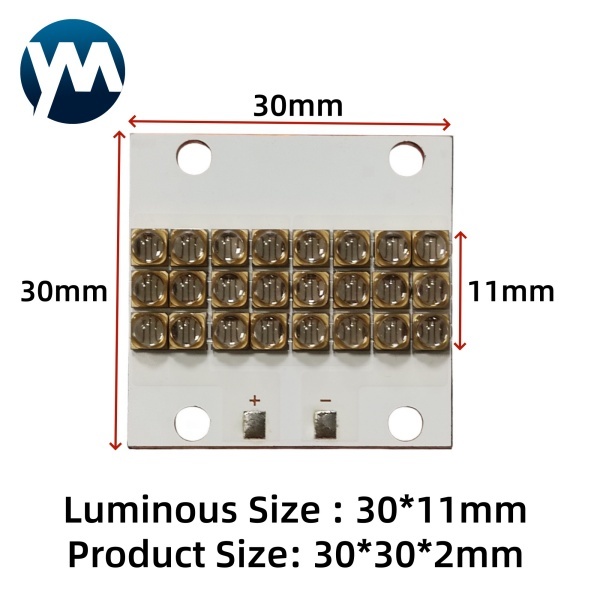

| Module size | 30mm*30mm*2mm |
| Luminous Size | 30mm*11mm |
| Wavelength | 365nm,385nm,395nm,405nm |
| Voltage | 40.8-45.6V |
| Current | 1-1.4A |
| Chip Material | Seoul,LG,Epileds |
| Encapsulation process | High temperature quartz lens package module lamp |
| Module material | 2.0mm Copper substrate |
| Lifespan (hours) | 15000 |
| Warranty | 1 year |
| Application | Apply in various UV printing industries, painting,UV inks, UV glues, and touch screens. |
| Place of Origin | Shenzhen, Guangdong, China |
Our UV LED curing systems are widly used in glass industry, decoration industry, building materials industry,
furniture industry, etc.
It's suitable for kinds brand of inkjet sprayers such as Konika,Xaar, Ricoh, and kinds of printers
includingflatbed printer, roll to roll printer, wide format printer, inkjet, digital printer, rotary press etc.
1.What's the wavelength of the UV LED lamp.
A: The wavelength of UV LED lamp usually are365-405nm. The wavelength for inkjet printer is
395nm, 385/395nm for printing machine,365nm for UVglue.
2.What's your LED chip brand?
A: The LED chip brand we use are LG, Epileds, Seoul, Nichia.
3.What's the cooling way?
A: We have water cooling and air cooling UV LED.
4.If the light intensity is adjustable?
A: Yes, the intensity is 0-100% adjustable. We designed different dimming system for different products.
If you have other needs, please contact us to provide you with the best solution.
